ジクス工業では、優れた特性を持つBNを主体として、素材の開発から加工までを一貫生産しています。
一般に黒鉛と同様の結晶構造をもち、別名「白い黒鉛」と呼ばれる六方晶窒化ホウ素粉末を、独自の技術により分散させた潤滑離型剤や、この窒化ホウ素とアルミナを複合した耐熱衝撃性、電気絶縁性に優れた複合セラミックスなど、様々な製品を生み出してきました。
窒化ホウ素（h-BN）は、黒鉛に似た層状構造をもち、潤滑性、離型性に優れた材料です。黒鉛は電気伝導性があるのに対し、窒化ホウ素（h-BN）は電気絶縁性を有し、化学的安定性、熱的安定性など優れた特性を備えています。
At Zikusu, we specialize in the development and production of materials based on BN (boron nitride), which possesses excellent properties. We have been able to create various products by dispersing hexagonal boron nitride powder, also known as “white graphite,” which shares a similar crystal structure to graphite, using our proprietary technology. These products include lubricating release agents with excellent lubrication and release properties, as well as composite ceramics that combine boron nitride and alumina for high heat resistance, impact resistance, and electrical insulation.
Boron nitride (h-BN) has a layered structure similar to graphite and is a material known for its lubricity and release properties. Unlike graphite, which is electrically conductive, boron nitride (h-BN) is electrically insulating and possesses excellent chemical stability and thermal stability.
窒化ホウ素（h-BN）は、電子工業の分野では、半導体拡散、放熱シート、高周波電気絶縁。ガラス工業の分野では、潤滑材、離型剤、治具。金属溶解分野では、バルブ・樋、ルツボ、パイプ・ボードとして、添加物としては樹脂、耐火物、ゴムなどに。また精密実験用として、原子炉やロケットなどの用途に使われています。
Boron nitride (h-BN) finds various applications in the electronics industry, including semiconductor diffusion, heat dissipation sheets, and high-frequency electrical insulation. In the glass industry, it is used as a lubricant, release agent, and fixture. In the field of metal melting, it is used in valves, troughs, pipes, and boards. It is also used as an additive in resins, refractories, rubber, and other materials. Furthermore, it is utilized for precise experimental purposes and in applications such as nuclear reactors and rockets.
ジクス工業の新素材研究開発は
BNを主体とした素材から加工まで
一貫生産しています
Zikusu conducts integrated production from the development of new materials centered around BN to processing.
BN系マシナブルセラミックス素材は高純度BN、BN-Si3N4複合材、BN-Aℓ2O3複合材の3タイプを取り扱っています。
高純度BNは不活性雰囲気中で1,800～2,000℃の耐熱性があり化学的に安定です。
BN-Si3N4複合材はBNに高強度を付与した素材です。BN-Aℓ2O3複合材はBNの特性を保持した最も安価な素材です。
これらの豊富な素材の中からお客様のご要望に合った素材を選択していただけます。
Zikusu offers three types of BN-based machinable ceramic materials: high-purity BN, BN-Si3N4 composite, and BN-Al2O3 composite.
High-purity BN exhibits high heat resistance in an inert atmosphere, ranging from 1,800 to 2,000°C, and it is chemically stable.
BN-Si3N4 composite is a material that combines BN with high strength.
BN-Al2O3 composite is the most cost-effective material that retains the characteristics of BN.
From this diverse range of materials, you can select the one that best suits your specific requirements.
六方晶BNは黒鉛に似た構造を持ち、潤滑、離型性に優れています。
このBN粉末を独自の技術で分散させたBNスラリー、BNスプレーを取り扱っています。
一般的なBNスプレーの溶媒には塩化メチレンなどの規制物質が用いられますが、ジクス工業では規制対象外で無害なイソプロピルアルコールを用いています。
環境にも人体にも優しく、安心してお使いいただける製品です。
Hexagonal boron nitride (h-BN) has a structure similar to graphite and exhibits excellent lubrication and release properties. We handle BN slurry and BN spray, which are prepared by dispersing this BN powder using our proprietary technology.
While conventional BN sprays often use regulated substances such as methylene chloride as solvents, Zikusu utilizes isopropyl alcohol, which is not subject to regulations and is harmless to both the environment and human health.
Our products are environmentally friendly and safe to use, providing peace of mind to our customers.
ジクス工業は国、自治体の研究機関や大学と連携し、新素材の開発を続けています。
お客様のニーズに応えるべく、常に新しい製品、技術を生み出す努力を続けています。
Zikusu collaborates with national and local research institutions as well as universities to continue the development of new materials. We strive to constantly create new products and technologies to meet the needs of our customers.
製品紹介
Product introduction
ジクス工業では、各種マシナブルセラミックス、高純度成形体、パウダー、スプレー等に展開してまいりました。

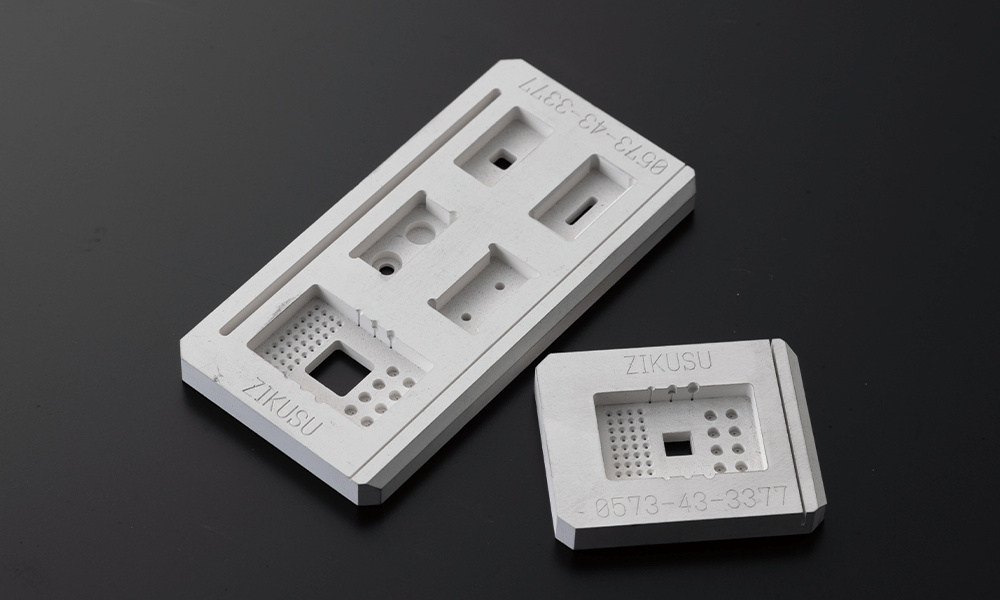

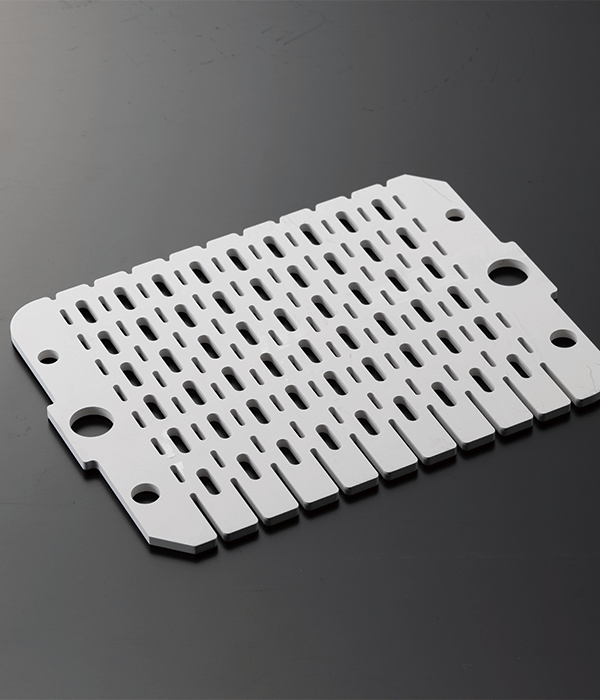

電子部品の製造、又は組み付け用に使用する治具の素材として開発したBN-Aℓ2O3複合セラミックス。
高強度、耐熱衝撃性に優れた、ロー付け治具及び金属湯部材用に開発したBN-Si3N4複合セラミックス。
溶融金属、溶融ガラスに対し濡れ難く不反応性で、化学的安定性があり、焼成後に通常の工具にて機械加工が可能な高純度BNセラミックス。

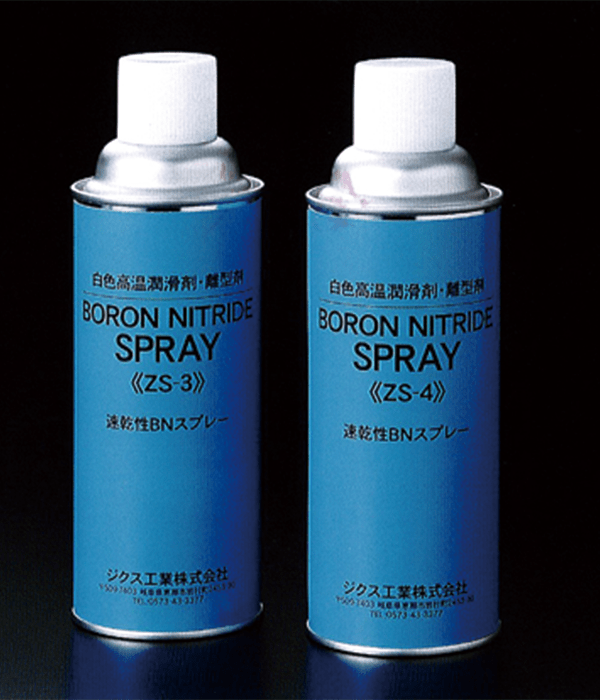

白色の黒鉛と言われる六方晶窒化ホウ素粉末を、独自の技術により分散させたスプレータイプの潤滑離型材。
また、BN粉末ZSAシリーズでは、超微粒粉末で焼結性に優れたZSA-200、潤滑性、離型性に優れたZSA-20、さらに結晶化させたZSA-5の3種類のグレードをご用意。
お客様のさらなる発展を願って、お客様のご要望をお伺いし、常に新しい製品の研究、開発を続けています。
Zikusu has been providing a wide range of products, including various machinable ceramics, high-purity molded bodies, powders, and sprays.
BN-Al2O3 composite ceramics have been developed as materials for fixtures used in the manufacturing or assembly of electronic components. They offer high strength and excellent heat shock resistance.
BN-Si3N4 composite ceramics have been developed specifically for low-temperature bonding fixtures and molten metal components, offering high strength and excellent heat resistance.
High-purity BN ceramics are resistant to wetting and reaction with molten metals and glasses. They exhibit chemical stability and can be machined using conventional tools after firing.
The spray-type lubricating release agent utilizes dispersed hexagonal boron nitride powder, which is often referred to as “white graphite,” and is created using our proprietary technology.
The BN powder ZSA series offers three grades: ZSA-200, which consists of ultra-fine particles and exhibits excellent sinterability; ZSA-20, which excels in lubrication and release properties; and ZSA-5, which has been further crystallized.
With the goal of supporting our customers’ further development, we always listen to their needs and continue researching and developing new products.
